6 CBM Asphalt Distributor Truck

6 CBM Asphalt Distributor Truck

●Model CSC5122GLQ
●Chassis SINOTRUK 4x2
●Spray Width 0.2-4.5m
●Spray Volume 0.3-2.0kg/m2
●Asphalt Tank 6000L
●Auxiliary Engine 26kW

Brief

CSCTRUCK is an ISO9001:2000 certified automatic asphalt distributor manufacturer, located in China. With years spent expanding our product line, we are able to offer a wide range of asphalt distributors, to suit each customer's needs. On this page, we provide two models of our automatic asphalt distributor: 6m³ Distributor Truck

Structures

The construction of the CSC5122GLQ automatic asphalt distributor consists of a truck component, asphalt spray system, air circuit system, water circuit system, speed measuring system and a power supply system.

Chassis

The chassis unit of the automatic asphalt distributor adopts a Sinotruk HOWO chassis, which has the advantages of a large bearing capacity, low fuel consumption, easy operation and a reliable breaking system.

Oil Heating System

6m³ Asphalt Distributor Truck 1

1. The coil realizes heat oil circulation from the heat oil furnace inlet and outlets through the heat oil pipeline to heat the asphalt in the tank and pipeline.


2. The hot oil pump forces the heated oil throughout the system.

6m³ Asphalt Distributor Truck 2


6m³ Asphalt Distributor Truck 3

3. A fire tube boiler is the heat source used to raise and maintain the temperature of the oil in circulation.


4. An expansion tank supplies enough space for fluid expansion when the oil is heated. Water and air from heated oil are separated and eliminated through this tank. The air hole in this tank bridges the heat oil system and external space to make an atmospheric system with low cost and safe performance.

6m³ Asphalt Distributor Truck 4


6m³ Asphalt Distributor Truck 5

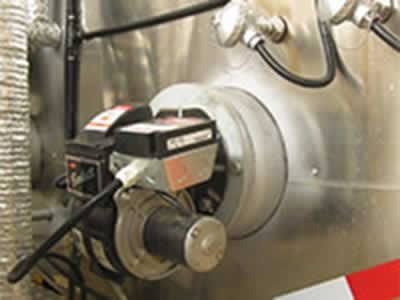

5. An imported diesel dual burner is installed to heat the HTF interlayer of the tank fire tube. All the nozzles and asphalt pipes are heated by HTF cycles to ensure the smooth cycle of asphalt. High heating efficiency and short preheating standby time reduce the auxiliary time of construction.

Spray System

The asphalt spray system for the automatic asphalt distributor consists of the asphalt tank, pipeline, pump, filter, and spray unit with nozzle carrier lifting device.



6m³ Asphalt Distributor Truck 6

1. The asphalt tank has an insulation layer with thickness of 100mm to preserve the temperature of heated asphalt, improving heating efficiency and reducing auxiliary construction time to maintain appropriate spray temperature.


2. The asphalt pipeline is used to deliver asphalt to the nozzle shell or start major and minor cycles: asphalt tank – pipeline – asphalt pump – pipeline – asphalt tank.

6m³ Asphalt Distributor Truck 7

6m³ Asphalt Distributor Truck 8

3. The asphalt pump is a power unit that pumps asphalt through the pipeline of the system.

4. An asphalt filter element is equipped to remove foreign matter from the asphalt, protecting the pump.

6m³ Asphalt Distributor Truck 9

6m³ Asphalt Distributor Truck 10

5. The spray unit of the automatic asphalt distributor has a fast-acting piston that completes the turning on/off of the nozzles by means of its straight reciprocating motion. Each nozzle is controlled by a pressurized cylinder.


6. The nozzle carrier lifting device has two lifting cylinders to control nozzle carrier height.





Air Circuit System

The air circuit system consists of an air source (tractor unit), distribution air bags, a control valve, air tube, solenoid valve, and cylinder. The tractor provides plenty of air directly, which can guarantee the consistent working of the power system, chip spreader, asphalt spray and asphalt valve group and waterway system.



Water Circuit System

The water circuit system is composed of a water tank, filter, solenoid valve, control valve, water pipe, water spray frame, and water nozzle. The water nozzles are installed on the upper part of each tire, which effectively prevents asphalt adhesion on the tires during operation.



Control System

1. Automatic control of the spray volume and walking speed according to the spray capacity.

2. Spray volume can be changed via computer in the cab, the procedure can automatically adjust itself.

3. The accurate control of the asphalt pump displacement makes the spray volume error ±1.5%.

4. Easy switch between manual and automatic modes.

5. The asphalt and chips spray width can be easily adjusted.

6. The automatic asphalt distributor can be controlled in cab or at the back-operating platform of the equipment.



Speed Measuring System

The speed measuring system primarily consists of a power supply, radar detector, signal conversion device and an output device. It uses a 24V DC inverter power supply to prevent any electrical system overload.



The system has advantages of an outstanding anti-interference capability, water resistance, and shock resistance.



Power Supply System

The power takeoff has key parts (hydraulic pump, hydraulic motor, lifting hydraulic cylinder, asphalt pump, heat oil pump, gas control valve, proportioning valve, automatic control system, velocity radar, etc.) that are all qualified to guarantee the reliability of the automatic asphalt distributor and prolong service life.



Advantages

1. This equipment reduces the construction labor intensity, budget constraints, and resources, and it improves work efficiency and quality.

2. The automatic asphalt distributor gets its force from the tractor power.

3. Excellent insulation, anticorrosion abilities and durability.

4. This equipment uses the high precision nozzles to ensure spray consistency.

5. The equipment operation can be controlled remotely but also has onboard controls.



CSCTRUCK automatic asphalt distributor is a result of our extensive experience, which is designed with the present road conditions in mind. As it is economical, practical and easy to operate, our asphalt distributor is widely used in spraying emulsified asphalt, diluted asphalt, hot asphalt, hot modified asphalt and various binders.



On the basis of introduced advanced technologies both domestic and abroad, this distributor adds some humanized designs that ensure technical content of construction quality and improve construction conditions and environment. Heat oil pipe is equipped in asphalt pipelines. Heat oil internal heating method guarantees liquid running smooth and prevents asphalt from coke burning. In the process of manual spray, the rotation indicator reads asphalt pump rotation speed. The operator could calculate the corresponding vehicle speed and asphalt rotation speed to different spray volume according to our specified formula, so as to guarantee uniform spray volume. In the process of automatic spray, the operator just set spray volume in the console and start velocity meter, and then the automatic control system could regulate asphalt pump rotation speed according to the vehicle speed, so as to guarantee precise and even spray. Its reasonable designs guarantee the asphalt spray uniformity. This product gets through the strict detection of our operators and enjoys stable and reliable construction performance, and is known as ideal economical road maintenance equipment.



Applications

CSCTRUCK 4m3, 6m3 automatic asphalt distributors are primarily used for upper and lower seal layer, prime layer, asphalt surfacing, asphalt penetration surface, fog seal layer, and so on. In addition, they can also be used to transport liquid asphalt and other heavy oil.



Features

1. Designed using advanced temperature maintenance technology, this automatic asphalt distributor has an outstanding oil heating system. The internal heating system keeps the asphalt hot so that it remains malleable while simultaneously preventing it from burning.

2. During manual spraying, the automatic asphalt distributor displays the rotation speed of the asphalt pump. The operator can use this reading to alter vehicle speed or the rotation to achieve a uniform coat of asphalt on the surface of the road. The asphalt truck also has an automatic spray option which regulates the vehicle and asphalt pump speed.

3. These features help the operator achieve uniform asphalt coatings without any errors. Our automatic asphalt distributors are chosen for their reliability and high-quality construction performance.



In addition to asphalt distributor, we at CSCTRUCK offer many other types of road maintenance equipment, like synchronous chip sealer, micro surfacing paver, road sweeper machine, and more. Having the advantages of being reliable, efficient, cost effective and safe to use, our products are CCC, CE certified and are increasingly popular with customers from Poland, Russia, Indonesia, Vietnam, Kazakhstan, Kyrgyzstan, Nigeria, Angola, Congo, Uganda, Mali, among other countries.

We look forward to serving more customers worldwide. If you would like to learn more about our products, please feel free to contact us.

Description

The asphalt spray truck is a kind of professional distributing emulsified asphalt, heat diluted asphalt, asphalt, high viscosity modified asphalt, it is an intelligent automation high-tech truck. The truck sprinkles road surface with asphalt and spray the priming oil, waterproof layer, bond layer on asphalt roadbed.
It consist of chassis,asphalt tank, asphalt pump,spray system, hot oil heating system , hydraulic system, burning system, control system, pneumatic system and operational platform. The truck is easy to operate. Based on existing technologies , it has new design to make sure the sprinkling asphalt quantity , to improve the construction environment. It is reasonable and reliable to ensure the asphalt distributing uniformity, computer control is stable and reliable, vehicle technical has reached the world advanced level. It can be work under the harsh environment.


Basic Info.

Model NO.
CSC5122GLQ
Certification
ISO9001: 2000
Condition
New
Product Name
Asphalt Distributor Truck
Tank Volume
6 cbm
Wheel Base
4500mm
Wheel Drive System
4x2
Horse Power
190HP
Tire Specification
12.00R20
Max.Speed(Km/H)
95
Bitumen Capacity
0.3-2.0L//M2
Color
Customization
Warranty
12 Months
Brand
CSCTRUCK
Transport Package
Nude Packing, Polished with Wax, Roro or Bulk Ship
Specification
8870*2496*3135(mm)
Origin
China
HS Code
8705909990



Product Model

CSC5122GLQ

Chassis model

ZZ1124K4716D1

Spray width

200-4500mm

Spray volume

0.3-2.0 kg/m2

Asphalt tank volume

6000L

Asphalt heating mode

Imported diesel oil burner (calorific value 10×104kCal/h)

Spray media

hot (modified) asphalt, cutback asphalt, emulsified asphalt, etc.

Auxiliary power/rotation

26kW/2350r/min

Overall dimensions

L×W×H=8870×2496×3135 (mm)



 Configurations

No.

Parts

Brand

Origin

Remarks

1

Chassis

SINOTRUK

China

Euro 3

2

Asphalt tank

CSCTRUCK

China

100 mm insulation layer, stainless steel surface coating

3

Asphalt pump

Shanggui

China


4

Heat oil pump

Zhaohong

China


5

Display screen

MCGS

China


6

PLC control system

IDEC

Japan


7

Asphalt pump motor

Eaton

China

Sino-American joint venture

8

Heat oil pump motor

TJ

China

Sino-American joint venture

9

Burner

Beckett

USA


10

Hydraulic gear pump

TJ

China

Sino-American joint venture

11

Hydraulic proportional valve

Command Controls Corp

USA


12

Sealing elements

DICHTOMATIK

Germany


13

Cylinder

AIRTAC

Taiwan , China


14

Air control container valve

JPC

China


15

Air treatment components

AIRTAC

Taiwan , China


16

Auxiliary engine

Laidong

China

26kW

Brief

CSCTRUCK is an ISO9001:2000 certified automatic asphalt distributor manufacturer, located in China. With years spent expanding our product line, we are able to offer a wide range of asphalt distributors, to suit each customer's needs. On this page, we provide two models of our automatic asphalt distributor: 6m³ Distributor Truck

Structures

The construction of the CSC5122GLQ automatic asphalt distributor consists of a truck component, asphalt spray system, air circuit system, water circuit system, speed measuring system and a power supply system.

Chassis

The chassis unit of the automatic asphalt distributor adopts a Sinotruk HOWO chassis, which has the advantages of a large bearing capacity, low fuel consumption, easy operation and a reliable breaking system.

Oil Heating System

6m³ Asphalt Distributor Truck 1

1. The coil realizes heat oil circulation from the heat oil furnace inlet and outlets through the heat oil pipeline to heat the asphalt in the tank and pipeline.


2. The hot oil pump forces the heated oil throughout the system.

6m³ Asphalt Distributor Truck 2


6m³ Asphalt Distributor Truck 3

3. A fire tube boiler is the heat source used to raise and maintain the temperature of the oil in circulation.


4. An expansion tank supplies enough space for fluid expansion when the oil is heated. Water and air from heated oil are separated and eliminated through this tank. The air hole in this tank bridges the heat oil system and external space to make an atmospheric system with low cost and safe performance.

6m³ Asphalt Distributor Truck 4


6m³ Asphalt Distributor Truck 5

5. An imported diesel dual burner is installed to heat the HTF interlayer of the tank fire tube. All the nozzles and asphalt pipes are heated by HTF cycles to ensure the smooth cycle of asphalt. High heating efficiency and short preheating standby time reduce the auxiliary time of construction.

Spray System

The asphalt spray system for the automatic asphalt distributor consists of the asphalt tank, pipeline, pump, filter, and spray unit with nozzle carrier lifting device.



6m³ Asphalt Distributor Truck 6

1. The asphalt tank has an insulation layer with thickness of 100mm to preserve the temperature of heated asphalt, improving heating efficiency and reducing auxiliary construction time to maintain appropriate spray temperature.


2. The asphalt pipeline is used to deliver asphalt to the nozzle shell or start major and minor cycles: asphalt tank – pipeline – asphalt pump – pipeline – asphalt tank.

6m³ Asphalt Distributor Truck 7

6m³ Asphalt Distributor Truck 8

3. The asphalt pump is a power unit that pumps asphalt through the pipeline of the system.

4. An asphalt filter element is equipped to remove foreign matter from the asphalt, protecting the pump.

6m³ Asphalt Distributor Truck 9

6m³ Asphalt Distributor Truck 10

5. The spray unit of the automatic asphalt distributor has a fast-acting piston that completes the turning on/off of the nozzles by means of its straight reciprocating motion. Each nozzle is controlled by a pressurized cylinder.


6. The nozzle carrier lifting device has two lifting cylinders to control nozzle carrier height.





Air Circuit System

The air circuit system consists of an air source (tractor unit), distribution air bags, a control valve, air tube, solenoid valve, and cylinder. The tractor provides plenty of air directly, which can guarantee the consistent working of the power system, chip spreader, asphalt spray and asphalt valve group and waterway system.



Water Circuit System

The water circuit system is composed of a water tank, filter, solenoid valve, control valve, water pipe, water spray frame, and water nozzle. The water nozzles are installed on the upper part of each tire, which effectively prevents asphalt adhesion on the tires during operation.



Control System

1. Automatic control of the spray volume and walking speed according to the spray capacity.

2. Spray volume can be changed via computer in the cab, the procedure can automatically adjust itself.

3. The accurate control of the asphalt pump displacement makes the spray volume error ±1.5%.

4. Easy switch between manual and automatic modes.

5. The asphalt and chips spray width can be easily adjusted.

6. The automatic asphalt distributor can be controlled in cab or at the back-operating platform of the equipment.



Speed Measuring System

The speed measuring system primarily consists of a power supply, radar detector, signal conversion device and an output device. It uses a 24V DC inverter power supply to prevent any electrical system overload.



The system has advantages of an outstanding anti-interference capability, water resistance, and shock resistance.



Power Supply System

The power takeoff has key parts (hydraulic pump, hydraulic motor, lifting hydraulic cylinder, asphalt pump, heat oil pump, gas control valve, proportioning valve, automatic control system, velocity radar, etc.) that are all qualified to guarantee the reliability of the automatic asphalt distributor and prolong service life.



Advantages

1. This equipment reduces the construction labor intensity, budget constraints, and resources, and it improves work efficiency and quality.

2. The automatic asphalt distributor gets its force from the tractor power.

3. Excellent insulation, anticorrosion abilities and durability.

4. This equipment uses the high precision nozzles to ensure spray consistency.

5. The equipment operation can be controlled remotely but also has onboard controls.



CSCTRUCK automatic asphalt distributor is a result of our extensive experience, which is designed with the present road conditions in mind. As it is economical, practical and easy to operate, our asphalt distributor is widely used in spraying emulsified asphalt, diluted asphalt, hot asphalt, hot modified asphalt and various binders.



On the basis of introduced advanced technologies both domestic and abroad, this distributor adds some humanized designs that ensure technical content of construction quality and improve construction conditions and environment. Heat oil pipe is equipped in asphalt pipelines. Heat oil internal heating method guarantees liquid running smooth and prevents asphalt from coke burning. In the process of manual spray, the rotation indicator reads asphalt pump rotation speed. The operator could calculate the corresponding vehicle speed and asphalt rotation speed to different spray volume according to our specified formula, so as to guarantee uniform spray volume. In the process of automatic spray, the operator just set spray volume in the console and start velocity meter, and then the automatic control system could regulate asphalt pump rotation speed according to the vehicle speed, so as to guarantee precise and even spray. Its reasonable designs guarantee the asphalt spray uniformity. This product gets through the strict detection of our operators and enjoys stable and reliable construction performance, and is known as ideal economical road maintenance equipment.



Applications

CSCTRUCK 4m3, 6m3 automatic asphalt distributors are primarily used for upper and lower seal layer, prime layer, asphalt surfacing, asphalt penetration surface, fog seal layer, and so on. In addition, they can also be used to transport liquid asphalt and other heavy oil.



Features

1. Designed using advanced temperature maintenance technology, this automatic asphalt distributor has an outstanding oil heating system. The internal heating system keeps the asphalt hot so that it remains malleable while simultaneously preventing it from burning.

2. During manual spraying, the automatic asphalt distributor displays the rotation speed of the asphalt pump. The operator can use this reading to alter vehicle speed or the rotation to achieve a uniform coat of asphalt on the surface of the road. The asphalt truck also has an automatic spray option which regulates the vehicle and asphalt pump speed.

3. These features help the operator achieve uniform asphalt coatings without any errors. Our automatic asphalt distributors are chosen for their reliability and high-quality construction performance.



In addition to asphalt distributor, we at CSCTRUCK offer many other types of road maintenance equipment, like synchronous chip sealer, micro surfacing paver, road sweeper machine, and more. Having the advantages of being reliable, efficient, cost effective and safe to use, our products are CCC, CE certified and are increasingly popular with customers from Poland, Russia, Indonesia, Vietnam, Kazakhstan, Kyrgyzstan, Nigeria, Angola, Congo, Uganda, Mali, among other countries.

We look forward to serving more customers worldwide. If you would like to learn more about our products, please feel free to contact us.
